This tutorial shows how to use the SDK methods to display the following items in an in-game store:

• virtual items
• groups of virtual items
• bundles
• packages of virtual currency

Before you start, configure items in Publisher Account:

1. Configure virtual items and groups of virtual items.
2. Configure packages of virtual currencies.
3. Configure bundles.

This tutorial describes the implementation of the following logic:

The logics and interface in the examples are less complicated than they will be in your application. A possible item catalog in an in-game store implementation option is described in the demo project.

Implement display of virtual items

Create item widget

1. Create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Convert the created game object in a prefab by dragging a game object from a Hierarchy panel to a Project panel.
3. Select a created prefab and click Open Prefab in the Inspector panel.
4. Add the following UI elements as prefab child objects and configure their visuals:
   • item background image
   • item name
   • item description
   • item price
   • item image

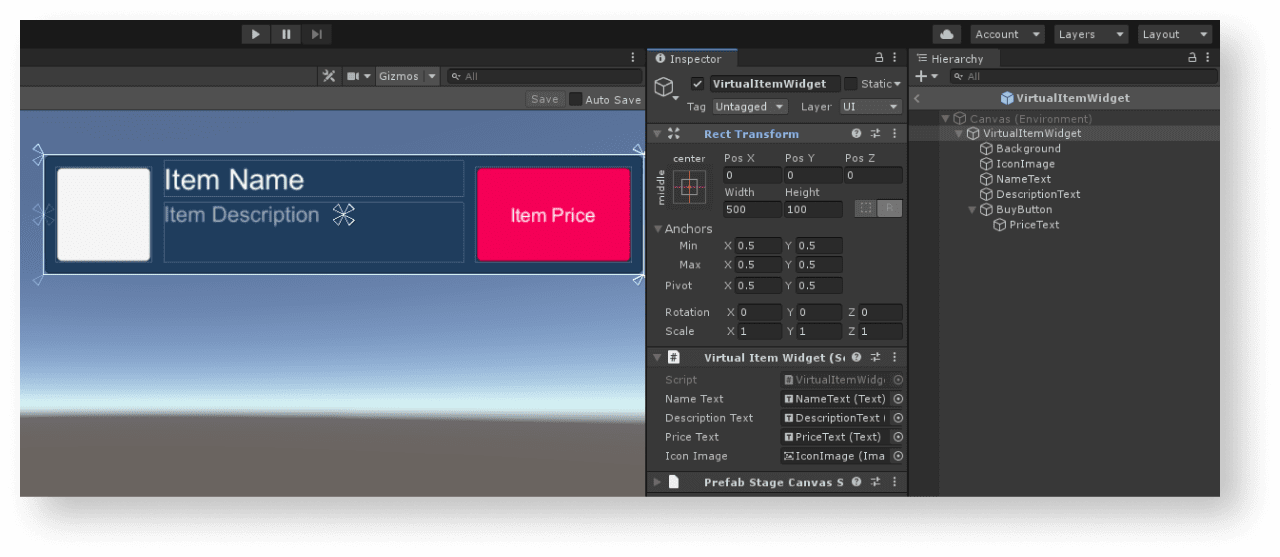

The following picture shows an example of the widget structure.

Create item widget script

1. Create a script VirtualItemWidget inherited from the MonoBehaviour base class.
2. Declare variables for the item widget interface elements and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class VirtualItemWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9
10		public Text NameText;
11
12		public Text DescriptionText;
13
14		public Text PriceText;
15
16		public Image IconImage;
17	}
18}

Create page to show list of items

1. On the scene, create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Add the following UI elements as prefab child objects and configure their visuals:
   • page background image
   • item widgets display area

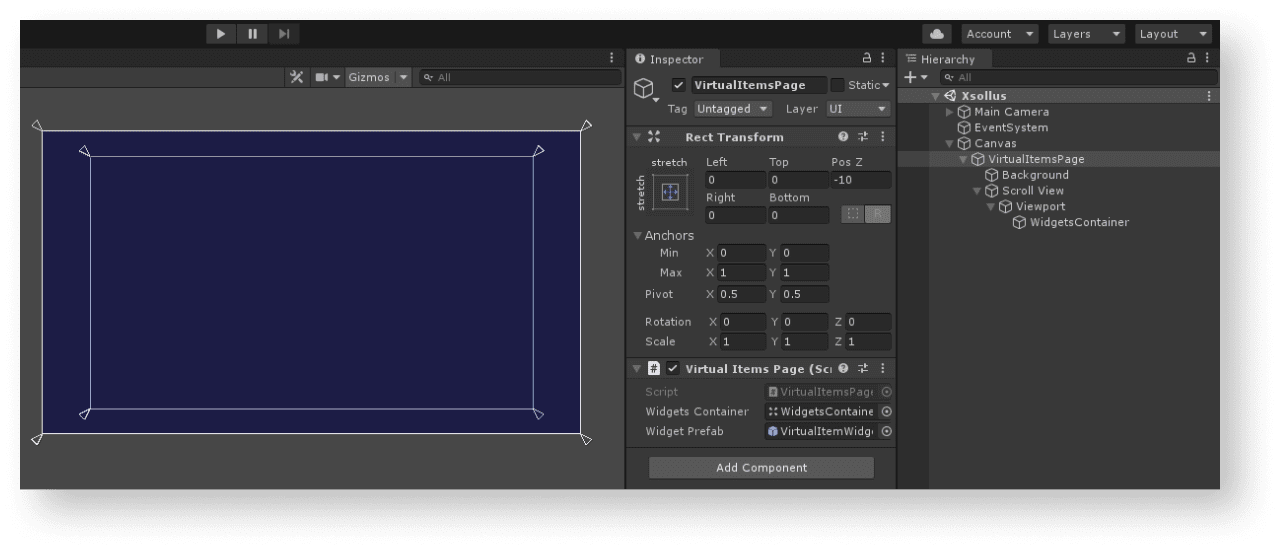

The following picture shows an example of the page structure.

Create page controller

1. Create a script VirtualItemsPage inherited from the MonoBehaviour base class.
2. Declare the following variables:
   • WidgetsContainer — container for widgets
   • WidgetPrefab — item widget prefab

3. Attach a script to a page game object:
   1. Select an object in a Hierarchy panel.
   2. In the Inspector panel, click Add Component and select a VirtualItemsPage script.
4. Set values for variables in the Inspector panel.

5. Add login logics by calling an XsollaLogin.Instance.SignIn SDK method in the Start method and pass to it:
   • a username or email address in the username parameter
   • a user password in the password parameter

1. • a flag in the rememberUser parameter for remembering an account
   • the OnAuthenticationSuccess callback method for successful user login
   • the OnError callback method for an error

6. Add logics for getting the list of items. In the OnAuthenticationSuccess method call the XsollaStore.Instance.GetCatalog SDK method and pass to it:
   • a Project ID in the projectId parameter

1. • the OnItemsRequestSuccess for successful operation of getting a list of items
   • the OnError callback method for an error
   • an offset based on the first item in the list in the offset parameter
   • the number of loaded items in the limit parameter

7. In the OnItemsRequestSuccess method, add logics for creating a widget for every received item:
   1. Instantiate a prefab of item widget as a container child object.
   2. Attach the received VirtualItemWidget component to a widget variable.

8. Pass the following data to the item widget:
   1. Pass the storeItem.name variable value to the element with the item name.
   2. Pass the storeItem.description variable value to the element with the item description.
   3. Implement the following logics to display the item price:
      • If the value of the storeItem.price variable doesn’t equal null, the item is sold for real currency. Specify the price in the {amount} {currency} format and pass it to the widget element.
      • If the value of the storeItem.virtual_prices variable doesn’t equal null, the item is sold for virtual currency. Specify the price in the {name}: {amount} format and pass it to the widget element.

1. 4. To display an item image, use the ImageLoader.Instance.GetImageAsync utility method and pass to it:
      • Image URL.
      • An anonymous function as a callback. In this function, add a received sprite as an item image.

Example of a page controller script:

 1uusing System.Linq;
 2using UnityEngine;
 3using Xsolla.Core;
 4using Xsolla.Login;
 5using Xsolla.Store;
 6
 7namespace Recipes
 8{
 9	public class VirtualItemsPage : MonoBehaviour
10	{
11		// Declaration of variables for containers and widget prefabs
12
13		public Transform WidgetsContainer;
14
15		public GameObject WidgetPrefab;
16
17		private void Start()
18		{
19			// Starting the authentication process
20
21			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, OnAuthenticationSuccess, OnError);
22		}
23
24		private void OnAuthenticationSuccess(string token)
25		{
26			// After successful authentication starting the request for catalog from store
27
28			XsollaStore.Instance.GetCatalog(XsollaSettings.StoreProjectId, OnItemsRequestSuccess, OnError, offset: 0, limit: 50);
29		}
30
31		private void OnItemsRequestSuccess(StoreItems storeItems)
32		{
33			// Iterating the items collection and assign values for appropriate ui elements
34
35			foreach (var storeItem in storeItems.items)
36			{
37				var widgetGo = Instantiate(WidgetPrefab, WidgetsContainer, false);
38				var widget = widgetGo.GetComponent<VirtualItemWidget>();
39
40				widget.NameText.text = storeItem.name;
41				widget.DescriptionText.text = storeItem.description;
42
43				if (storeItem.price != null)
44				{
45					var realMoneyPrice = storeItem.price;
46					widget.PriceText.text = $"{realMoneyPrice.amount} {realMoneyPrice.currency}";
47				}
48				else if (storeItem.virtual_prices != null)
49				{
50					var virtualCurrencyPrice = storeItem.virtual_prices.First(x => x.is_default);
51					widget.PriceText.text = $"{virtualCurrencyPrice.name}: {virtualCurrencyPrice.amount}";
52				}
53
54				ImageLoader.Instance.GetImageAsync(storeItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
55			}
56		}
57
58		private void OnError(Error error)
59		{
60			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
61		}
62	}
63}

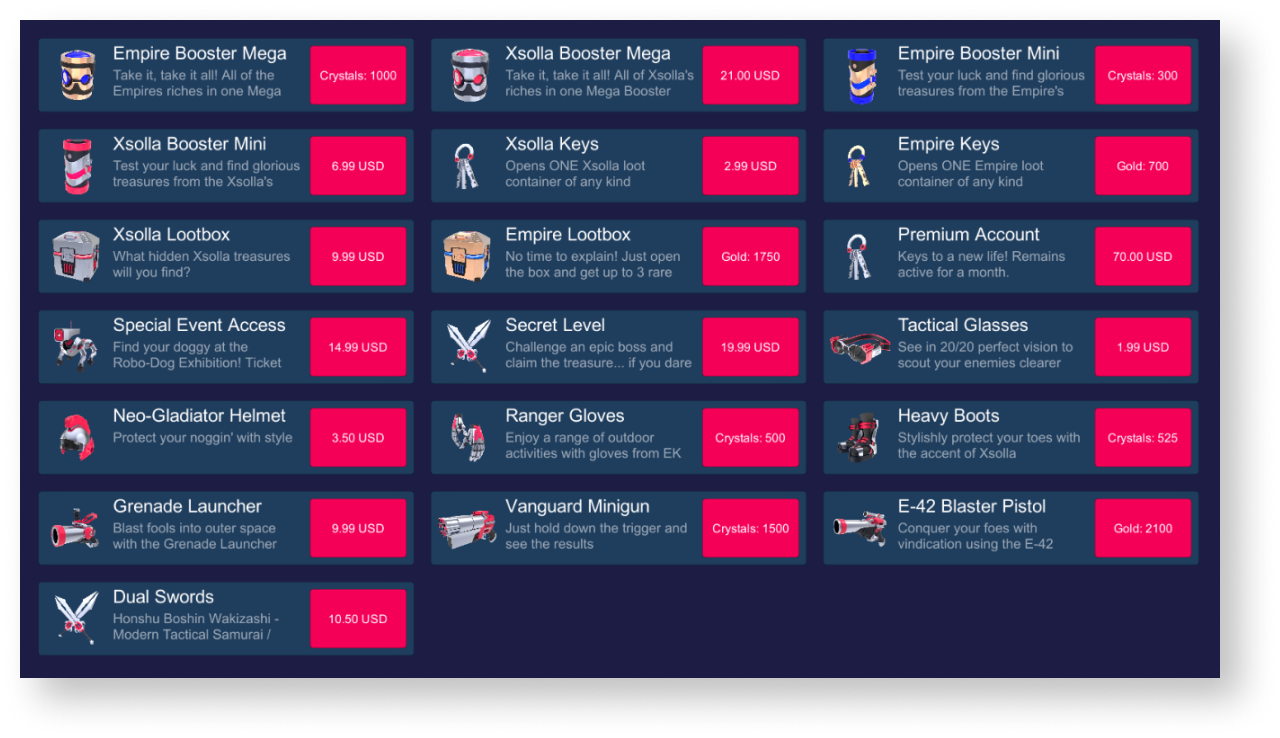

The following picture shows the result of the script’s work.

Implement display of virtual item groups

Create item widget

1. Create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Convert the created game object in a prefab by dragging a game object from a Hierarchy panel to a Project panel.
3. Select a created prefab and click Open Prefab in the Inspector panel.
4. Add the following UI elements as prefab child objects and configure their visuals:
   • item background image
   • item name
   • item description
   • item price
   • item image

The following picture shows an example of the widget structure.

Create item widget script

1. Create a script VirtualItemWidget inherited from the MonoBehaviour base class.
2. Declare variables for the item widget interface elements and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class VirtualItemWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9
10		public Text NameText;
11
12		public Text DescriptionText;
13
14		public Text PriceText;
15
16		public Image IconImage;
17	}
18}

Create widget for button that opens groups of items

1. Create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Convert the created game object in a prefab by dragging a game object from a Hierarchy panel to a Project panel.
3. Select a created prefab and click Open Prefab in the Inspector panel.
4. Add the button that allows displaying of the group of items as a child object for a prefab and configure its visuals.

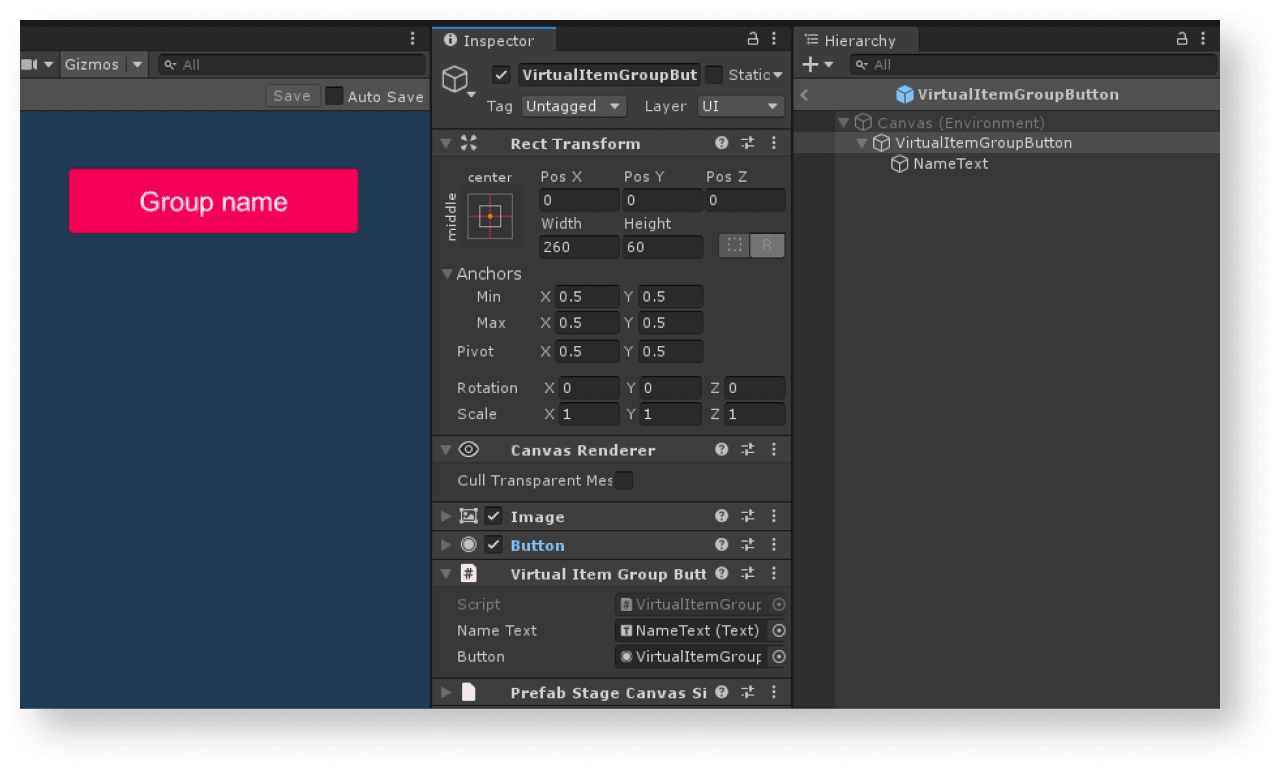

The following picture shows an example of the widget structure.

Create script for button that opens groups of items

1. Create the VirtualItemGroupButton script inherited from the MonoBehaviour base class.
2. Declare variables for the button that opens the group of items and set values for the variables in the Inspector panel.
3. Add a script to the root object of a prefab:
   1. Select an object in the Hierarchy panel.
   2. In the Inspector panel, click Add Component and select a VirtualItemGroupButton script.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class VirtualItemGroupButton : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9		public Text NameText;
10
11		public Button Button;
12	}
13}

Create page to show list of items

1. On the scene, create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Add the following UI elements as prefab child objects and configure their visuals:
   • page background image
   • item groups buttons display area
   • item widgets display area

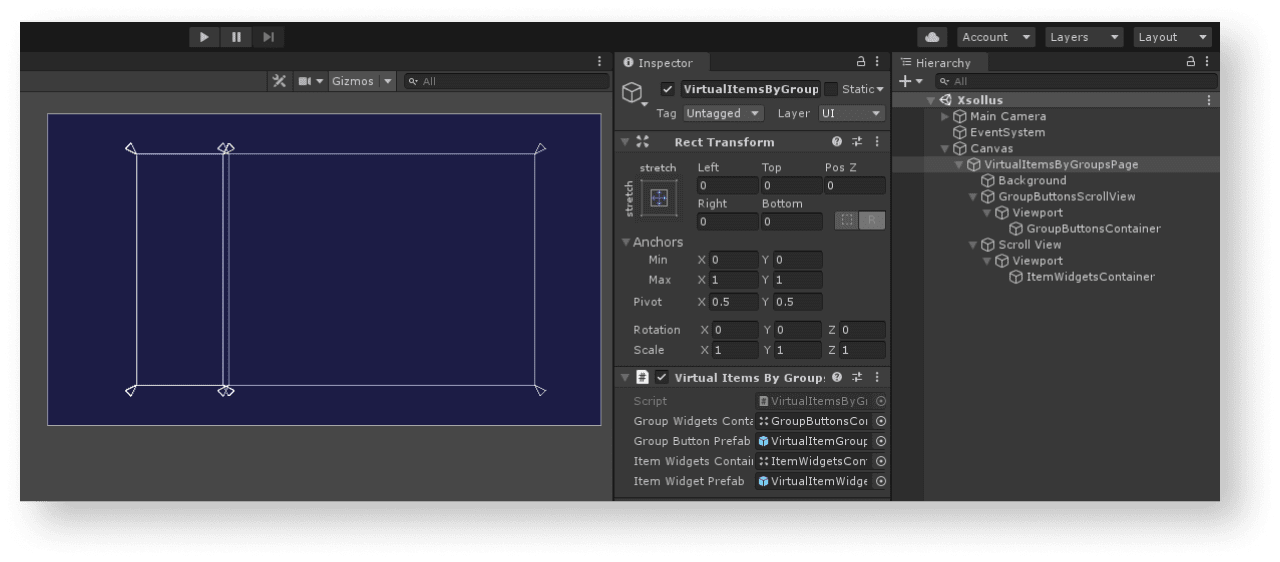

The following picture shows an example of the page structure.

Create page controller

1. Create the VirtualItemsByGroupsPage script inherited from the MonoBehaviour base class.
2. Declare variables:
   • GroupButtonsContainer — container for group buttons
   • GroupButtonPrefab — button prefab
   • ItemWidgetsContainer — container for item widgets
   • WidgetPrefab — item widget prefab

3. Attach a script to a page game object:
   1. Select an object in a Hierarchy panel.
   2. In the Inspector panel, click Add Component and select a VirtualItemsByGroupsPage script.
4. Set values for variables in the Inspector panel.
5. Add login logics by calling an XsollaLogin.Instance.SignIn SDK method in the Start method and pass to it:
   • a username or email address in the username parameter
   • a user password in the password parameter

1. • a flag in the rememberUser parameter for remembering an account
   • the OnAuthenticationSuccess callback method for successful user login
   • the OnError callback method for an error

6. Add logics for getting the list of items. In the OnAuthenticationSuccess method call the XsollaStore.Instance.GetCatalog SDK method and pass to it:
   • a Project ID in the projectId parameter

1. • the OnItemsRequestSuccess for successful operation of getting a list of items
   • the OnError callback method for an error
   • an offset based on the first item in the list in the offset parameter
   • the number of loaded items in the limit parameter

7. In the OnItemsRequestSuccess method, add logics for forming a list of item groups:
   1. Get the list of unique groups from a received item list. Add to it the All element that will show all items not dependent on their category.
   2. Clear the buttons container by deleting all child objects. To do this, call the DeleteAllChildren method and pass a container object to it.
   3. For every item group:

1. 1. 1. Instantiate a prefab of item widget as a container child object.
      2. Set the received VirtualItemGroupButton component to the groupButton variable.
      3. Pass the groupName variable value to the element with a group name.
      4. Add an anonymous method to the action of clicking the button. In this method, call the OnGroupSelected method and pass the name of the item group and the list of items as parameters.

1. 4. To display all items call the OnGroupSelected method and pass All as a group name.

8. In the OnGroupSelected method, add logics for initial display of items:
   1. Create the itemsForDisplay variable and assign all received items to it if the name of the item group has All. Otherwise, link items that the group name matches with the groupName variable to the itemsForDisplay variable.
   2. Clear the buttons container by deleting all child objects. To do this, call the DeleteAllChildren method and pass a container object to it.

9. Add logics for creating a widget for every received item:
   1. Instantiate a prefab of item widget as a container child object.
   2. Attach the received VirtualItemWidget component to a widget variable.

10. Pass the following data to the item widget:
    1. Pass the storeItem.name variable value to the element with the item name.
    2. Pass the storeItem.description variable value to the element with the item description.
    3. Implement the following logics to display item price:

1. 1. • If the value of the storeItem.price variable doesn’t equal null, the item is sold for real currency. Specify the price in the {amount} {currency} format and pass it to the widget element.
      • If the value of the storeItem.virtual_prices variable doesn’t equal null, the item is sold for virtual currency. Specify the price in the {name}: {amount} format and pass it to the widget element.

1. 4. To display an item image, use the ImageLoader.Instance.GetImageAsync utility method and pass to it:
      • Image URL.
      • An anonymous function as a callback. In this function, add a received sprite as an item image.

  1using System.Collections.Generic;
  2using System.Linq;
  3using UnityEngine;
  4using Xsolla.Core;
  5using Xsolla.Login;
  6using Xsolla.Store;
  7
  8namespace Recipes
  9{
 10	public class VirtualItemsByGroupsPage : MonoBehaviour
 11	{
 12		// Declaration of variables for containers and widget prefabs
 13		public Transform GroupButtonsContainer;
 14
 15		public GameObject GroupButtonPrefab;
 16
 17		public Transform ItemWidgetsContainer;
 18
 19		public GameObject ItemWidgetPrefab;
 20
 21		private void Start()
 22		{
 23			// Starting the authentication process
 24			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, onSuccess: OnAuthenticationSuccess, onError: OnError);
 25		}
 26
 27		private void OnAuthenticationSuccess(string token)
 28		{
 29			// After successful authentication starting the request for catalog from store
 30			XsollaStore.Instance.GetCatalog(XsollaSettings.StoreProjectId, OnItemsRequestSuccess, OnError, offset: 0, limit: 50);
 31		}
 32
 33		private void OnItemsRequestSuccess(StoreItems storeItems)
 34		{
 35			// Selecting the group’s name from items and order them alphabetical
 36			var groupNames = storeItems.items
 37				.SelectMany(x => x.groups)
 38				.GroupBy(x => x.name)
 39				.Select(x => x.First())
 40				.OrderBy(x => x.name)
 41				.Select(x => x.name)
 42				.ToList();
 43
 44			// Add group name for “all groups”, which will mean show all items regardless of group affiliation
 45			groupNames.Insert(0, "All");
 46
 47			// Clear container
 48			DeleteAllChildren(GroupButtonsContainer);
 49
 50			// Iterating the group names and creating ui-button for each
 51			foreach (var groupName in groupNames)
 52			{
 53				var buttonObj = Instantiate(GroupButtonPrefab, GroupButtonsContainer, false);
 54				var groupButton = buttonObj.GetComponent<VirtualItemGroupButton>();
 55
 56				groupButton.NameText.text = groupName;
 57				groupButton.Button.onClick.AddListener(() => OnGroupSelected(groupName, storeItems));
 58			}
 59
 60			// Calling method for redraw page
 61			OnGroupSelected("All", storeItems);
 62		}
 63
 64		private void OnGroupSelected(string groupName, StoreItems storeItems)
 65		{
 66			// Declaring variable for items which will display on page
 67			IEnumerable<StoreItem> itemsForDisplay;
 68			if (groupName == "All")
 69			{
 70				itemsForDisplay = storeItems.items;
 71			}
 72			else
 73			{
 74				itemsForDisplay = storeItems.items.Where(item => item.groups.Any(group => group.name == groupName));
 75			}
 76
 77			// Clear container
 78			DeleteAllChildren(ItemWidgetsContainer);
 79
 80			// Iterating the items collection and assign values for appropriate ui elements
 81			foreach (var storeItem in itemsForDisplay)
 82			{
 83				var widgetGo = Instantiate(ItemWidgetPrefab, ItemWidgetsContainer, false);
 84				var widget = widgetGo.GetComponent<VirtualItemWidget>();
 85
 86				widget.NameText.text = storeItem.name;
 87				widget.DescriptionText.text = storeItem.description;
 88
 89				if (storeItem.price != null)
 90				{
 91					var realMoneyPrice = storeItem.price;
 92					widget.PriceText.text = $"{realMoneyPrice.amount} {realMoneyPrice.currency}";
 93				}
 94				else if (storeItem.virtual_prices != null)
 95				{
 96					var virtualCurrencyPrice = storeItem.virtual_prices.First(x => x.is_default);
 97					widget.PriceText.text = $"{virtualCurrencyPrice.name}: {virtualCurrencyPrice.amount}";
 98				}
 99
100				ImageLoader.Instance.GetImageAsync(storeItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
101			}
102		}
103
104		// Utility method for delete all children of container
105		private static void DeleteAllChildren(Transform parent)
106		{
107			var childList = parent.Cast<Transform>().ToList();
108			foreach (var childTransform in childList)
109			{
110				Destroy(childTransform.gameObject);
111			}
112		}
113
114		private void OnError(Error error)
115		{
116			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
117		}
118	}
119}

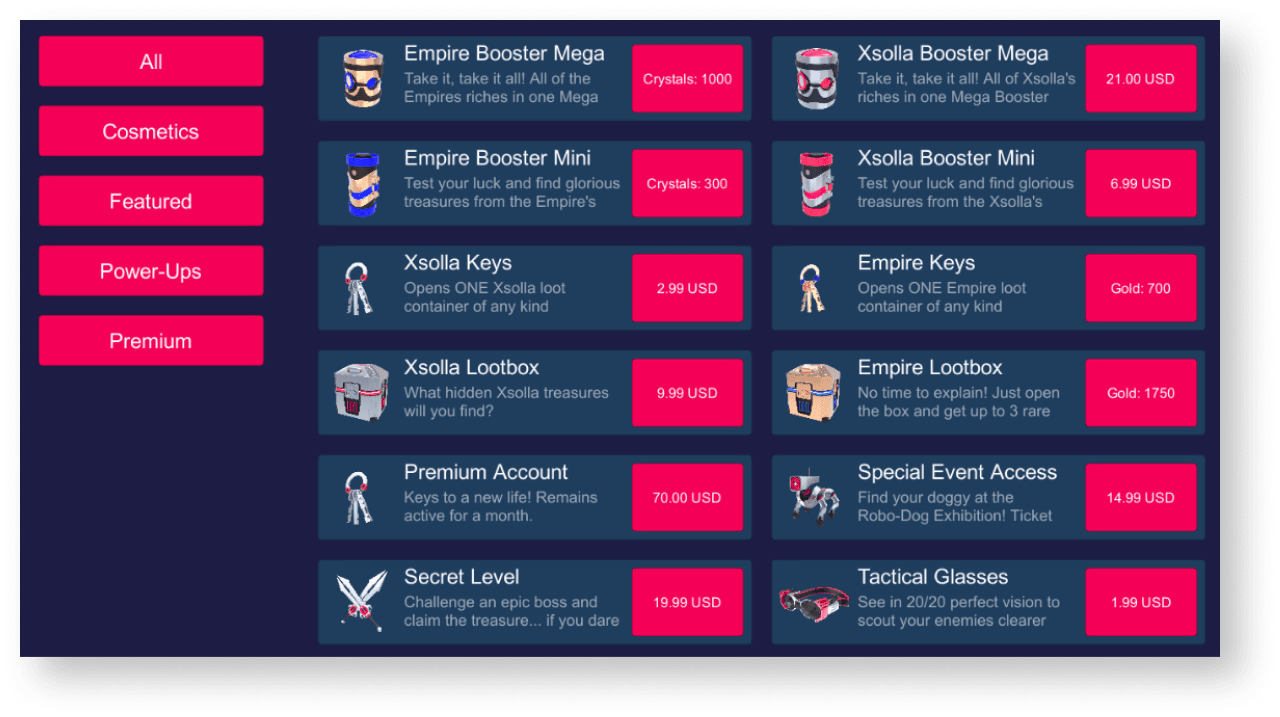

Example of a page controller script:

Implement display of bundles

Create bundle widget

1. Create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Convert the created game object in a prefab by dragging a game object from a Hierarchy panel to a Project panel.
3. Select a created prefab and click Open Prefab in the Inspector panel.
4. Add the following UI elements as prefab child objects and configure their visuals:

1. • widget background image
   • bundle name
   • bundle description
   • bundle price
   • bundle content description (items and their quantity)
   • bundle image

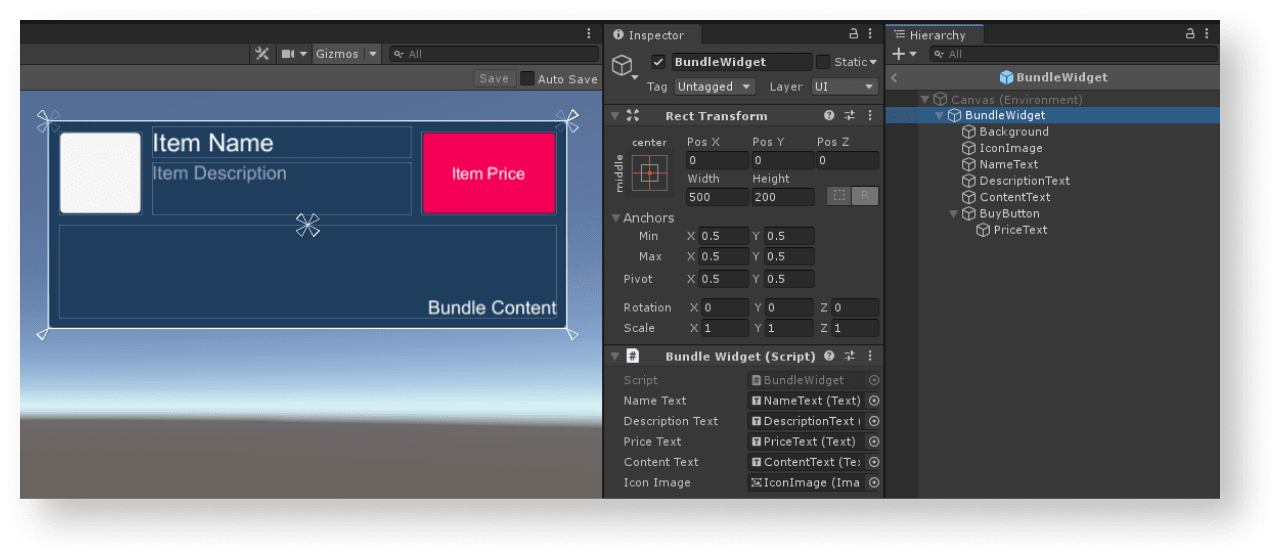

The following picture shows an example of the widget structure.

Create widget script

1. Create a script BundleWidget inherited from the MonoBehaviour base class.
2. Declare variables for the item widget interface elements and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class BundleWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9		public Text NameText;
10
11		public Text DescriptionText;
12
13		public Text PriceText;
14
15		public Text ContentText;
16
17		public Image IconImage;
18	}
19}

Create page to show bundles

1. On the scene, create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Add the following UI elements as prefab child objects and configure their visuals:
   • page background image
   • bundle widgets display area

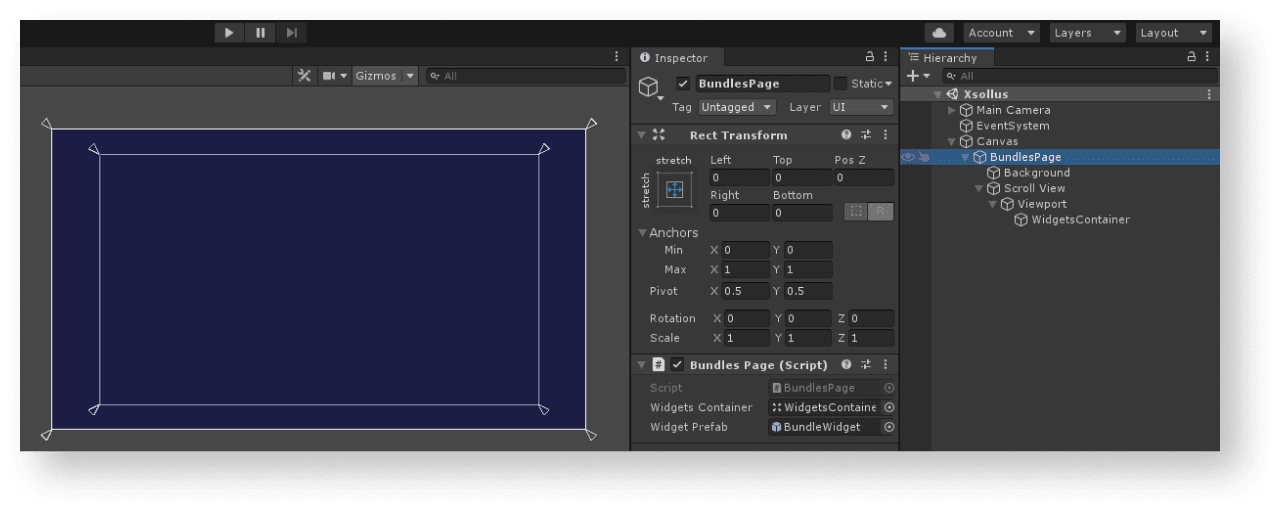

The following picture shows an example of the page structure.

Create page controller

1. Create the BundlesPage script inherited from the MonoBehaviour base class.
2. Declare variables:
   • WidgetsContainer — container for widgets
   • WidgetPrefab — bundle widget prefab

3. Attach a script to a page game object:
   1. Select an object in a Hierarchy panel.
   2. In the Inspector panel, click Add Component and select a BundlesPage script.

4. Set values for variables in the Inspector panel.
5. Add login logics by calling an XsollaLogin.Instance.SignIn SDK method in the Start method and pass to it:
   • a username or email address in the username parameter
   • a user password in the password parameter

1. • a flag in the rememberUser parameter for remembering an account
   • the OnAuthenticationSuccess callback method for successful user login
   • the OnError callback method for an error

6. Add logics for getting the list of bundles. In the OnAuthenticationSuccess method call the XsollaStore.Instance.GetBundles SDK method and pass to it:
   • a Project ID in the projectId parameter

1. • the OnItemsRequestSuccess callback method for successful operation of getting a list of bundles
   • the OnError callback method for an error

7. In the OnBundlesRequestSuccess method, add logics for creating a widget for every received bundles:
   1. Instantiate a prefab of item widget as a container child object.
   2. Attach the received BundleWidget component to a widget variable.

8. Pass the following data to the bundle widget:
   1. Pass the bundleItem.name variable value to the element with the item name.
   2. Pass the bundleItem.description variable value to the element with the item description.
   3. Implement the following logics to display bundle content:
      1. Use every item in a bundle to form a line that contains the item name and its quantity. The line should have a {name} x {quantity} format.
      2. Group these lines into one line by using a new line character as a separator.
      3. Pass the new line to the widget element.

1. 4. Implement the following logics to display bundle price:
      • If the value of the bundleItem.price variable doesn’t equal null, the bundle is sold for real currency. Specify the price in the {amount} {currency} format and pass it to the widget element.
      • If the value of the bundleItem.virtual_prices variable doesn’t equal null, the bundle is sold for virtual currency. Specify the price in the {name}: {amount} format and pass it to the widget element.

1. 5. To display an item image, use the ImageLoader.Instance.GetImageAsync utility method and pass to it:
      • Image URL.
      • An anonymous function as a callback. In this function, add a received sprite as a bundle image.

Example of a page controller script:

 1using System.Linq;
 2using UnityEngine;
 3using Xsolla.Core;
 4using Xsolla.Login;
 5using Xsolla.Store;
 6
 7namespace Recipes
 8{
 9	public class BundlesPage : MonoBehaviour
10	{
11		// Declaration of variables for containers and widget prefabs
12		public Transform WidgetsContainer;
13
14		public GameObject WidgetPrefab;
15
16		private void Start()
17		{
18			// Starting the authentication process
19			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, onSuccess: OnAuthenticationSuccess, onError: OnError);
20		}
21
22		private void OnAuthenticationSuccess(string token)
23		{
24			// After successful authentication starting the request for bundles from store
25			XsollaStore.Instance.GetBundles(XsollaSettings.StoreProjectId, OnBundlesRequestSuccess, OnError);
26		}
27
28		private void OnBundlesRequestSuccess(BundleItems bundleItems)
29		{
30			// Iterating the bundles collection and assign values for appropriate ui elements
31			foreach (var bundleItem in bundleItems.items)
32			{
33				var widgetGo = Instantiate(WidgetPrefab, WidgetsContainer, false);
34				var widget = widgetGo.GetComponent<BundleWidget>();
35
36				widget.NameText.text = bundleItem.name;
37				widget.DescriptionText.text = bundleItem.description;
38
39				var bundleContent = bundleItem.content.Select(x => $"{x.name} x {x.quantity}");
40				widget.ContentText.text = string.Join("\n", bundleContent);
41
42				if (bundleItem.price != null)
43				{
44					var realMoneyPrice = bundleItem.price;
45					widget.PriceText.text = $"{realMoneyPrice.amount} {realMoneyPrice.currency}";
46				}
47				else if (bundleItem.virtual_prices != null)
48				{
49					var virtualCurrencyPrice = bundleItem.virtual_prices.First(x => x.is_default);
50					widget.PriceText.text = $"{virtualCurrencyPrice.name}: {virtualCurrencyPrice.amount}";
51				}
52
53				ImageLoader.Instance.GetImageAsync(bundleItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
54			}
55		}
56
57		private void OnError(Error error)
58		{
59			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
60		}
61	}
62}

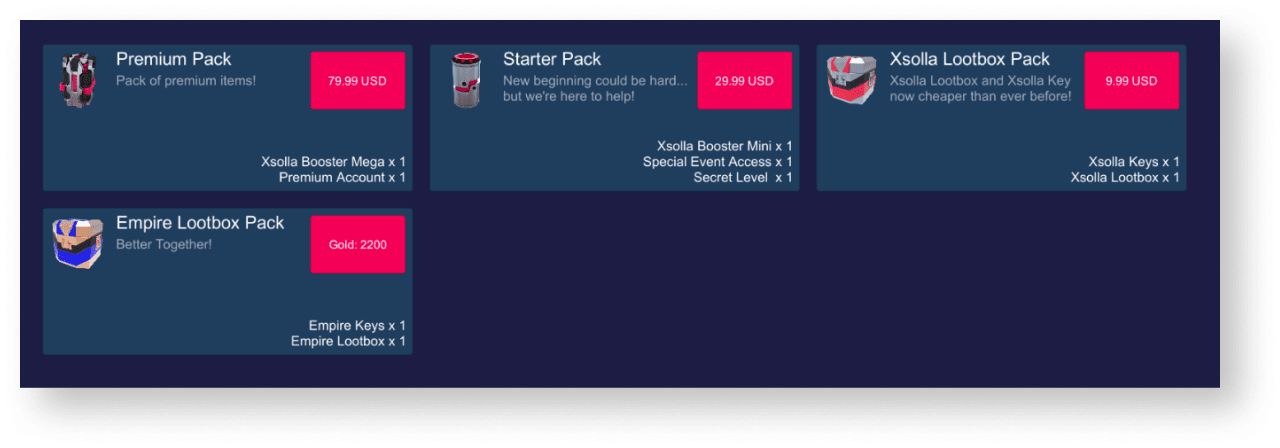

The following picture shows the result of the script’s work.

Implement display of virtual currency packages

Create widget for virtual currency package

1. Create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Convert the created game object in a prefab by dragging a game object from a Hierarchy panel to a Project panel.
3. Select a created prefab and click Open Prefab in the Inspector panel.
4. Add the following UI elements as prefab child objects and configure their visuals:

1. • widget background image
   • package name
   • package description
   • package price
   • package image

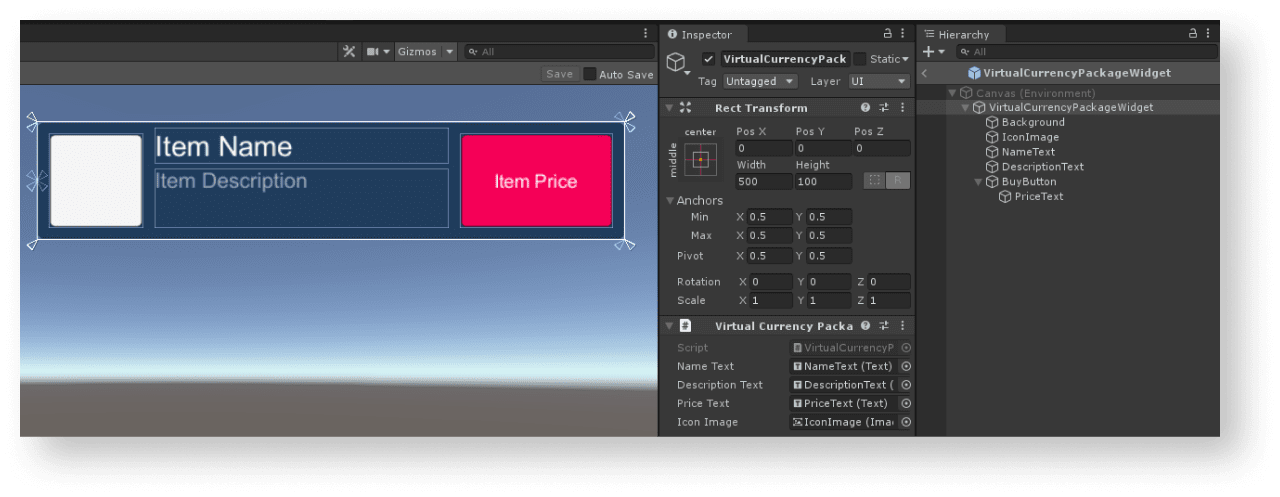

The following picture shows an example of the widget structure.

Create widget script

1. Create a script VirtualCurrencyPackageWidget inherited from the MonoBehaviour base class.
2. Declare variables for the item widget interface elements and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class VirtualCurrencyPackageWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9
10		public Text NameText;
11
12		public Text DescriptionText;
13
14		public Text PriceText;
15
16		public Image IconImage;
17	}
18}

Create page to show list of virtual currency packages

1. On the scene, create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Add the following UI elements as prefab child objects and configure their visuals:
   • page background image
   • virtual currency package widgets display area

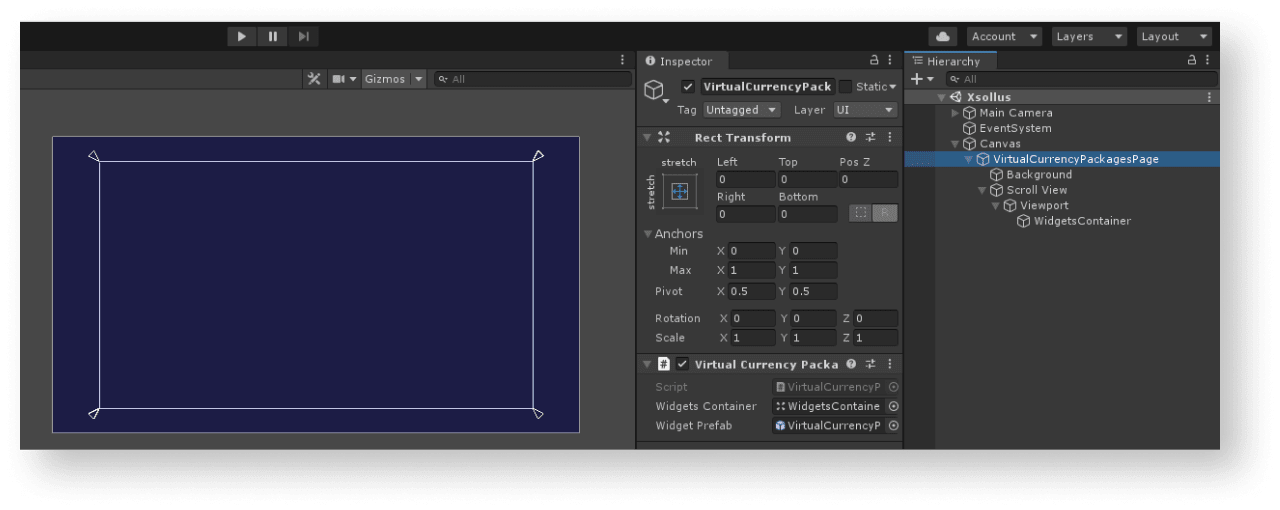

The following picture shows an example of the page structure.

Create page controller

1. Create the VirtualCurrencyPackagesPage script inherited from the MonoBehaviour base class.
2. Declare variables:
   • WidgetsContainer — container for widgets
   • WidgetPrefab — virtual currency package prefab

3. Attach a script to a page game object:
   1. Select an object in a Hierarchy panel.
   2. In the Inspector panel, click Add Component and select a VirtualCurrencyPackagesPage script.
4. Set values for variables in the Inspector panel.
5. Add login logics by calling an XsollaLogin.Instance.SignIn SDK method in the Start method and pass to it:

1. • username or email address in the username parameter
   • user password in the password parameter

1. • a flag in the rememberUser parameter for remembering an account
   • the OnAuthenticationSuccess callback method for successful user login
   • the OnError callback method for an error

6. Add logics for getting the list of items. In the OnAuthenticationSuccess method call the XsollaStore.Instance.GetVirtualCurrencyPackagesList SDK method and pass to it:
   • Project ID in the projectId parameter

1. • the OnItemsRequestSuccess for successful operation of getting a list of items
   • the OnError callback method for an error

7. In the OnPackagesRequestSuccess method, add logics for creating a widget for every received package:
   1. Instantiate a prefab of item widget as a container child object.
   2. Attach the received VirtualCurrencyPackageWidget component to a widget variable.

8. Pass the following data to the package widget:
   1. Pass the packageItem.name variable value to the element with the package name.
   2. Pass the packageItem.description variable value to the element with the package description.
   3. Implement the following logics to display package price:

1. 1. • If the value of the packageItem.price variable doesn’t equal null, the package is sold for real currency. Specify the price in the {amount} {currency} format and pass it to the widget element.
      • If the value of the packageItem.virtual_prices variable doesn’t equal null, the package is sold for virtual currency. Specify the price in the {name}: {amount} format and pass it to the widget element.

1. 4. To display an item image, use the ImageLoader.Instance.GetImageAsync utility method and pass to it:
      • Image URL.
      • An anonymous function as a callback. In this function, add a received sprite as an item image.

Example of a page controller script:

 1using System.Linq;
 2using UnityEngine;
 3using Xsolla.Core;
 4using Xsolla.Login;
 5using Xsolla.Store;
 6
 7namespace Recipes
 8{
 9	public class VirtualCurrencyPackagesPage : MonoBehaviour
10	{
11		// Declaration of variables for containers and widget prefabs
12		public Transform WidgetsContainer;
13
14		public GameObject WidgetPrefab;
15
16		private void Start()
17		{
18			// Starting the authentication process
19			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, onSuccess: OnAuthenticationSuccess, onError: OnError);
20		}
21
22		private void OnAuthenticationSuccess(string token)
23		{
24			// After successful authentication starting the request for packages from store
25			XsollaStore.Instance.GetVirtualCurrencyPackagesList(XsollaSettings.StoreProjectId, OnPackagesRequestSuccess, OnError);
26		}
27
28		private void OnPackagesRequestSuccess(VirtualCurrencyPackages packageItems)
29		{
30			// Iterating the packages collection and assign values for appropriate ui elements
31			foreach (var packageItem in packageItems.items)
32			{
33				var widgetGo = Instantiate(WidgetPrefab, WidgetsContainer, false);
34				var widget = widgetGo.GetComponent<VirtualCurrencyPackageWidget>();
35
36				widget.NameText.text = packageItem.name;
37				widget.DescriptionText.text = packageItem.description;
38
39				if (packageItem.price != null)
40				{
41					var realMoneyPrice = packageItem.price;
42					widget.PriceText.text = $"{realMoneyPrice.amount} {realMoneyPrice.currency}";
43				}
44				else if (packageItem.virtual_prices != null)
45				{
46					var virtualCurrencyPrice = packageItem.virtual_prices.First(x => x.is_default);
47					widget.PriceText.text = $"{virtualCurrencyPrice.name}: {virtualCurrencyPrice.amount}";
48				}
49
50				ImageLoader.Instance.GetImageAsync(packageItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
51			}
52		}
53
54		private void OnError(Error error)
55		{
56			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
57		}
58	}
59}

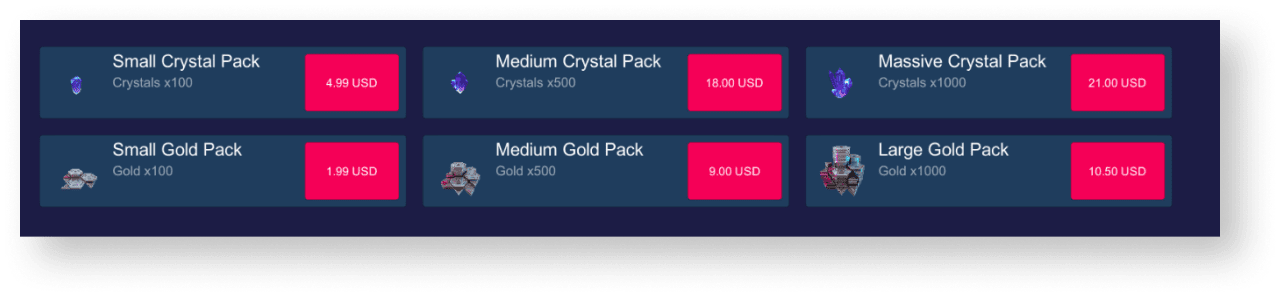

The following picture shows the result of the script’s work.

This instruction shows how to use the SDK methods to implement selling of virtual items for real currency.

Before you start, implement a display of virtual items in a catalog. In the following example, we describe how to implement purchasing of virtual items. Configuration for other item types is similar.

This tutorial describes the implementation of the following logic:

The logic and interface in the examples are less complicated than they will be in your application. A possible implementation option for selling items for real currency and displaying a catalog of items is described in the demo project.

Complete item widget

Add a purchase button to the item widget and configure its visuals.

The following picture shows an example of the widget structure.

Complete item widget script

1. Open the VirtualItemWidget script.
2. Declare variables for the purchase button and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class VirtualItemWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9
10		public Text NameText;
11
12		public Text DescriptionText;
13
14		public Text PriceText;
15
16		public Image IconImage;
17
18		public Button BuyButton;
19	}
20}

Complete page controller to show list of items

1. Open the VirtualItemsPage script.
2. In the OnAuthenticationSuccess method, pass the authorization token to the XsollaStore.Instance.Token variable.

3. Add logic for processing clicking on the virtual item purchase button:
   1. In the OnItemsRequestSuccess method, subscribe to the button-clicking event.
   2. Add an anonymous method that is called after the button is clicked.
   3. In this method, call the XsollaStore.Instance.ItemPurchase SDK method to form an order and pass to it:

1. 1. • a Project ID in the projectId parameter
      • an item identifier in the itemSku parameter
      • the OnOrderCreateSuccess method to process a successful forming of the item purchase order
      • the OnError callback method for an error

4. Implement opening of a payment page. To do this, add the OnOrderCreateSuccess method and call in it:
   • the XsollaStore.Instance.OpenPurchaseUi SDK method, to open a payment page
   • the TrackOrderStatus coroutine, to track changes in the order status

5. In the TrackOrderStatus coroutine, implement getting the info about the order status one time per second. To do this, use the XsollaStore.Instance.CheckOrderStatus SDK method and pass to it:
   • a Project ID in the projectId parameter
   • an order number from payment details in the orderId parameter
   • an anonymous method for processing successful receiving of order status info
   • an anonymous method for error processing

6. In the method for processing successful receiving of order status info, implement the callback of an OnPurchaseSuccess method during the payment for the order (payment status done or paid).
7. In the OnPurchaseSuccess method, implement the processing of a successful virtual item purchase.

8. If you use a built-in browser for opening a payment page, close this browser.

Example of a script for a page:

 1using System.Collections;
 2using System.Linq;
 3using UnityEngine;
 4using Xsolla.Core;
 5using Xsolla.Login;
 6using Xsolla.Store;
 7
 8namespace Recipes
 9{
10	public class VirtualItemsPage : MonoBehaviour
11	{
12		// Declaration of variables for containers and widget prefabs
13
14		public Transform WidgetsContainer;
15
16		public GameObject WidgetPrefab;
17
18		private void Start()
19		{
20			// Starting the authentication process
21
22			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, onSuccess: OnAuthenticationSuccess, onError: OnError);
23		}
24
25		private void OnAuthenticationSuccess(string token)
26		{
27			// After successful authentication starting the request for catalog from store
28			Token.Instance = Token.Create(token);
29			XsollaStore.Instance.GetCatalog(XsollaSettings.StoreProjectId, OnItemsRequestSuccess, OnError, offset: 0, limit: 50);
30		}
31
32		private void OnItemsRequestSuccess(StoreItems storeItems)
33		{
34			// Iterating the items collection and assign values for appropriate ui elements
35
36			foreach (var storeItem in storeItems.items)
37			{
38				if (storeItem.price == null)
39					continue;
40
41				var widgetGo = Instantiate(WidgetPrefab, WidgetsContainer, false);
42				var widget = widgetGo.GetComponent<VirtualItemWidget>();
43
44				widget.NameText.text = storeItem.name;
45				widget.DescriptionText.text = storeItem.description;
46
47				var realMoneyPrice = storeItem.price;
48				widget.PriceText.text = $"{realMoneyPrice.amount} {realMoneyPrice.currency}";
49
50				ImageLoader.Instance.GetImageAsync(storeItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
51
52				widget.BuyButton.onClick.AddListener(() => { XsollaStore.Instance.ItemPurchase(XsollaSettings.StoreProjectId, storeItem.sku, OnOrderCreateSuccess, OnError); });
53			}
54		}
55
56		private void OnOrderCreateSuccess(PurchaseData purchaseData)
57		{
58			XsollaStore.Instance.OpenPurchaseUi(purchaseData);
59			StartCoroutine(TrackOrderStatus(purchaseData));
60		}
61
62		private IEnumerator TrackOrderStatus(PurchaseData purchaseData)
63		{
64			var isDone = false;
65			while (!isDone)
66			{
67				XsollaStore.Instance.CheckOrderStatus
68				(
69					XsollaSettings.StoreProjectId,
70					purchaseData.order_id,
71					status =>
72					{
73						if (status.status == "paid" || status.status == "done")
74						{
75							isDone = true;
76							OnPurchaseSuccess();
77						}
78					},
79					error => { OnError(error); }
80				);
81
82				yield return new WaitForSeconds(1f);
83			}
84		}
85
86		private void OnPurchaseSuccess()
87		{
88			UnityEngine.Debug.Log($"Purchase successful");
89			BrowserHelper.Instance.Close();
90		}
91
92		private void OnError(Error error)
93		{
94			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
95		}
96	}
97}

This instruction shows how to use the SDK methods to implement selling of virtual items for virtual currency.

Before you start, implement a display of virtual items in a catalog. In the following example, we describe how to implement purchasing of virtual items. Configuration for other item types is similar.

This tutorial describes the implementation of the following logic:

The logic and interface in the examples are less complicated than they will be in your application. A possible implementation option for selling items for real currency and displaying a catalog of items is described in the demo project.

Complete item widget

Add a purchase button to the item widget and configure its visuals.

The following picture shows an example of the widget structure.

Complete item widget script

1. Open the VirtualItemWidget script.
2. Declare variables for the purchase button and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class VirtualItemWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9
10		public Text NameText;
11
12		public Text DescriptionText;
13
14		public Text PriceText;
15
16		public Image IconImage;
17
18		public Button BuyButton;
19	}
20}

Complete page controller to show list of items

1. Open the VirtualItemsPage script.
2. In the OnAuthenticationSuccess method, pass the authorization token to the XsollaStore.Instance.Token variable.

3. Add logic for processing clicking on the virtual item purchase button:
   1. In the OnItemsRequestSuccess method, subscribe to the button-clicking event.
   2. Add an anonymous method that is called after the button is clicked.
   3. In this method, call the XsollaStore.Instance.ItemPurchase SDK method to form an order and pass to it:

1. 1. • a Project ID in the projectId parameter
      • an item identifier in the itemSku parameter
      • the OnOrderCreateSuccess method to process a successful forming of the item purchase order
      • the OnError callback method for an error

5. In the OnOrderCreateSuccess method, implement the order status check process. To do this, use the XsollaStore.Instance.CheckOrderStatus SDK method and pass to it:
   • a Project ID in the projectId parameter
   • an order number from payment details in the orderId parameter
   • an anonymous method for processing successful receiving of order status info
   • an anonymous method for error processing

6. In the method for processing successful receiving of order status info, implement the callback of an OnPurchaseSuccess method during the payment for the order (payment status done or paid).
7. In the OnPurchaseSuccess method, implement the processing of a successful virtual item purchase.

Example of a script for a page:

 1using System.Linq;
 2using UnityEngine;
 3using Xsolla.Core;
 4using Xsolla.Login;
 5using Xsolla.Store;
 6
 7namespace Recipes
 8{
 9	public class VirtualItemsPage : MonoBehaviour
10	{
11		// Declaration of variables for containers and widget prefabs
12
13		public Transform WidgetsContainer;
14
15		public GameObject WidgetPrefab;
16
17		private void Start()
18		{
19			// Starting the authentication process
20
21			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, onSuccess: OnAuthenticationSuccess, onError: OnError);
22		}
23
24		private void OnAuthenticationSuccess(string token)
25		{
26			// After successful authentication starting the request for catalog from store
27			Token.Instance = Token.Create(token);
28			XsollaStore.Instance.GetCatalog(XsollaSettings.StoreProjectId, OnItemsRequestSuccess, OnError, offset: 0, limit: 50);
29		}
30
31		private void OnItemsRequestSuccess(StoreItems storeItems)
32		{
33			// Iterating the items collection and assign values for appropriate ui elements
34			foreach (var storeItem in storeItems.items)
35			{
36				if (storeItem.virtual_prices.Length == 0)
37					continue;
38
39				var widget = Instantiate(WidgetPrefab, WidgetsContainer, false).GetComponent<VirtualItemWidget>();
40
41				widget.NameText.text = storeItem.name;
42				widget.DescriptionText.text = storeItem.description;
43
44				var defaultPrice = storeItem.virtual_prices.First(x => x.is_default);
45				widget.PriceText.text = $"{defaultPrice.name}: {defaultPrice.amount}";
46
47				ImageLoader.Instance.GetImageAsync(storeItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
48
49				widget.BuyButton.onClick.AddListener(() =>
50				{
51					var price = storeItem.virtual_prices.First(x => x.is_default);
52					XsollaStore.Instance.ItemPurchaseForVirtualCurrency(XsollaSettings.StoreProjectId, storeItem.sku, price.sku, OnOrderCreateSuccess, OnError);
53				});
54			}
55		}
56
57		private void OnOrderCreateSuccess(PurchaseData purchaseData)
58		{
59			XsollaStore.Instance.CheckOrderStatus
60			(
61				XsollaSettings.StoreProjectId,
62				purchaseData.order_id,
63				status =>
64				{
65					if (status.status == "paid" || status.status == "done")
66					{
67						OnPurchaseSuccess();
68					}
69				},
70				error =>
71				{
72					OnError(error);
73				}
74			);
75		}
76
77
78		private void OnPurchaseSuccess()
79		{
80			UnityEngine.Debug.Log($"Purchase successful");
81		}
82
83		private void OnError(Error error)
84		{
85			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
86		}
87	}
88}

This tutorial shows how to use the SDK methods to display the balance of virtual currency in your app.

The logics and interface in the examples are less complicated than they will be in your application. A possible item catalog in an in-game store implementation option is described in the demo project.

Create widget for display of balance

1. Create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Convert the created game object in a prefab by dragging a game object from a Hierarchy panel to a Project panel.
3. Select a created prefab and click Open Prefab in the Inspector panel.
4. Add the following UI elements as prefab child objects and configure their visuals:
   • widget background image
   • virtual currency name
   • virtual currency quantity
   • virtual currency image

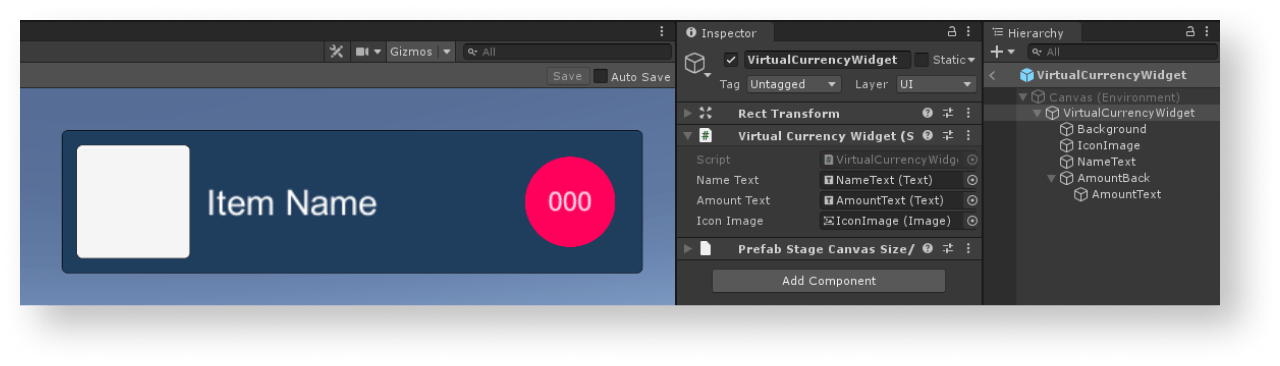

The following picture shows an example of the widget structure.

Create widget script to show balance

1. Create a script VirtualCurrencyWidget inherited from the MonoBehaviour base class.
2. Declare variables for the item widget interface elements and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class VirtualCurrencyWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9
10		public Text NameText;
11
12		public Text AmountText;
13
14		public Image IconImage;
15	}
16}

Create page with list of virtual currencies

1. On the scene, create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Add the following UI elements as prefab child objects and configure their visuals:
   • page background image
   • widgets display area

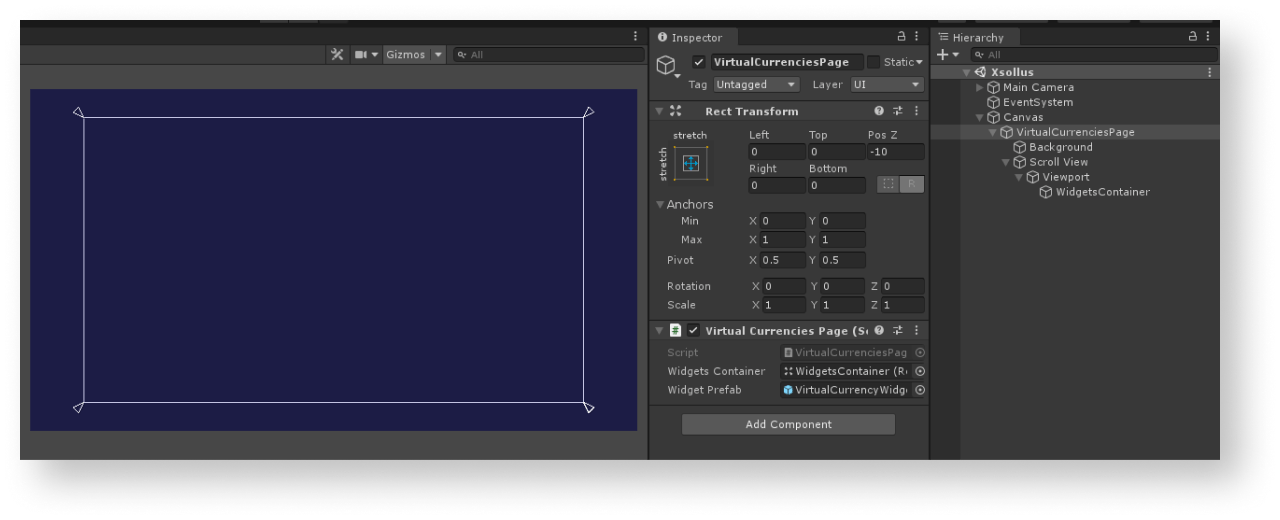

The following picture shows an example of the page structure.

Create controller for page with list of virtual currencies

1. Create a script VirtualCurrenciesPage inherited from the MonoBehaviour base class.
2. Declare the following variables:
   • WidgetsContainer — container for widgets
   • WidgetPrefab — balance display widget prefab

3. Attach a script to a page game object:
   1. Select an object in a Hierarchy panel.
   2. In the Inspector panel, click Add Component and select a VirtualCurrenciesPage script.

4. Set values for variables in the Inspector panel.
5. Add login logics by calling an XsollaLogin.Instance.SignIn SDK method in the Start method and pass to it:
   • a username or email address in the username parameter
   • a user password in the password parameter

1. • a flag in the rememberUser parameter for remembering an account
   • the OnAuthenticationSuccess callback method for successful user login
   • the OnError callback method for an error

6. Add logics of getting a list of virtual currencies. To do this, in the OnAuthenticationSuccess method:
   1. Pass the authorization token to the XsollaStore.Instance.Token variable.

1. 2. Call the XsollaStore.Instance.GetVirtualCurrencyBalance SDK method and pass to it:
      • the Project ID in the projectId parameter

1. 1. • the OnBalanceRequestSuccess method for successful operation of getting a list of items
      • the OnError callback method for an error

7. In the OnBalanceRequestSuccess method, add logics for creating a widget for every received virtual currency:
   1. Instantiate a prefab of item widget as a container child object.
   2. Attach the received VirtualCurrencyWidget component to a widget variable.

8. Pass the following data to the balance widget:
   1. Pass the balanceItem.name variable value to the element with the virtual currency name.
   2. Pass the balanceItem.amount.ToString() variable value to the element with the quantity of the virtual currency.
   3. Implement the following logics to display the item price. To show a virtual currency image, use the ImageLoader.Instance.GetImageAsync utility method, and pass to it:
      • The image URL.
      • An anonymous callback function. In this function, set the received sprite as a virtual currency image.

Example of the page controller script:

 1using UnityEngine;
 2using Xsolla.Core;
 3using Xsolla.Login;
 4using Xsolla.Store;
 5
 6namespace Recipes
 7{
 8	public class VirtualCurrenciesPage : MonoBehaviour
 9	{
10		// Declaration of variables for containers and widget prefabs
11
12		public Transform WidgetsContainer;
13
14		public GameObject WidgetPrefab;
15
16		private void Start()
17		{
18			// Starting the authentication process
19
20			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, OnAuthenticationSuccess, OnError);
21		}
22
23		private void OnAuthenticationSuccess(string token)
24		{
25			// After successful authentication starting the request for virtual currencies
26
27			Token.Instance = Token.Create(token);
28			XsollaStore.Instance.GetVirtualCurrencyBalance(XsollaSettings.StoreProjectId, OnBalanceRequestSuccess, OnError);
29		}
30
31		private void OnBalanceRequestSuccess(VirtualCurrenciesBalance balance)
32		{
33			// Iterating the virtual currencies list and assign values for appropriate ui elements
34
35			foreach (var balanceItem in balance.items)
36			{
37				var widgetGo = Instantiate(WidgetPrefab, WidgetsContainer, false);
38				var widget = widgetGo.GetComponent<VirtualCurrencyWidget>();
39
40				widget.NameText.text = balanceItem.name;
41				widget.AmountText.text = balanceItem.amount.ToString();
42
43				ImageLoader.Instance.GetImageAsync(balanceItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
44			}
45		}
46
47		private void OnError(Error error)
48		{
49			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
50		}
51	}
52}

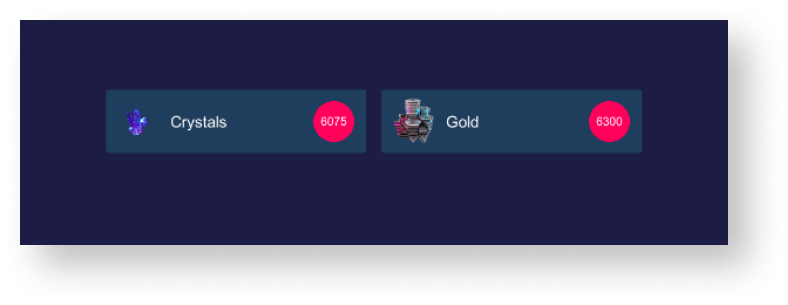

The following picture shows the result of the script’s work.

This tutorial shows how to use the SDK methods to display items in the user inventory.

The logics and interface in the examples are less complicated than they will be in your application. A possible inventory implementation option is described in the demo project.

Create item widget

1. Create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Convert the created game object in a prefab by dragging a game object from a Hierarchy panel to a Project panel.
3. Select a created prefab and click Open Prefab in the Inspector panel.
4. Add the following UI elements as prefab child objects and configure their visuals:
   • item background image
   • item name
   • item description
   • item quantity
   • item image

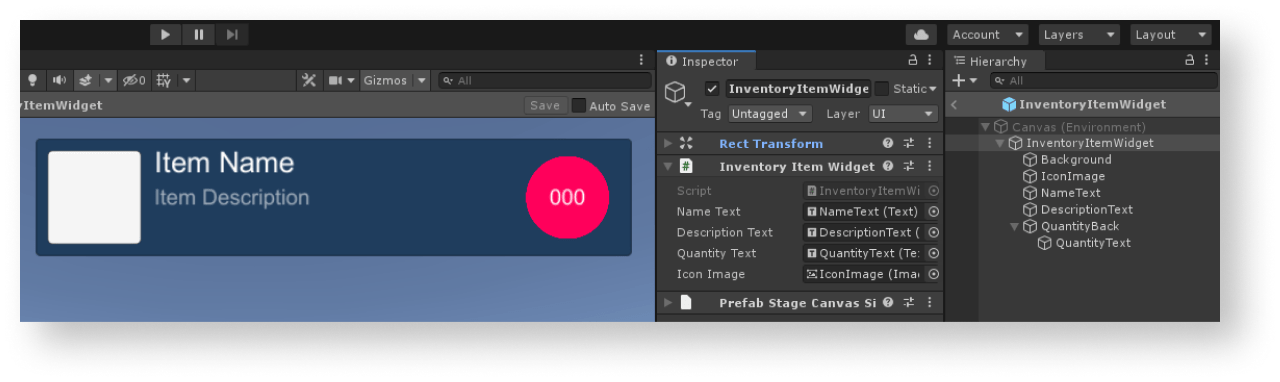

The following picture shows an example of the widget structure.

Create item widget script

1. Create a script InventoryItemWidget inherited from the MonoBehaviour base class.
2. Declare variables for the item widget interface elements and set values for them in the Inspector panel.

Example of the widget script:

 1using UnityEngine;
 2using UnityEngine.UI;
 3
 4namespace Recipes
 5{
 6	public class InventoryItemWidget : MonoBehaviour
 7	{
 8		// Declaration of variables for UI elements
 9
10		public Text NameText;
11
12		public Text DescriptionText;
13
14		public Text QuantityText;
15
16		public Image IconImage;
17	}
18}

Create page to show inventory

1. On the scene, create an empty game object. To do this, go to the main menu and select GameObject > Create Empty.
2. Add the following UI elements as prefab child objects and configure their visuals:
   • page background image
   • item widgets display area

The following picture shows an example of the page structure.

Create page controller

1. Create a script InventoryItemsPage inherited from the MonoBehaviour base class.
2. Declare the following variables:
   • WidgetsContainer — container for item widgets
   • WidgetPrefab — item widget prefab

3. Attach a script to a page game object:
   1. Select an object in a Hierarchy panel.
   2. In the Inspector panel, click Add Component and select an InventoryItemsPage script.

4. Set values for variables in the Inspector panel.
5. Add login logics by calling an XsollaLogin.Instance.SignIn SDK method in the Start method and pass to it:
   • a username or email address in the username parameter
   • a user password in the password parameter

1. • a flag in the rememberUser parameter for remembering an account
   • the OnAuthenticationSuccess callback method for successful user login
   • the OnError callback method for an error

6. Add logic for getting the list of items in the inventory. To do this, in the OnAuthenticationSuccess method:
   1. Pass an authorization token to the XsollaStore.Instance.Token variable.

1. 2. Call the XsollaStore.Instance.GetInventoryItems SDK method and pass to it:
      • a Project ID in the projectId parameter

1. 1. • the OnItemsRequestSuccess for successful operation of getting a list of items
      • the OnError callback method for an error

7. For every received item in the OnItemsRequestSuccess method, add logic for creating a widget:
   1. Use the InventoryItem.IsVirtualCurrency method, to add a check to make sure a received item isn’t a virtual currency.

1. 2. Instantiate a prefab of an item widget as a container child object.
   3. Attach the received InventoryItemWidget component to a widget variable.

8. Pass the following data to the item widget:
   1. Pass the inventoryItem.name variable value to the element with the item name.
   2. Pass the inventoryItem.description variable value to the element with the item description.
   3. Pass the inventoryItem.amount.ToString() to the element with the item quantity.
   4. To display an item image, use the ImageLoader.Instance.GetImageAsync utility method and pass to it:
      • Image URL
      • An anonymous function as a callback. In this function, add a received sprite as an item image.

Example of the page controller script:

 1using UnityEngine;
 2using Xsolla.Core;
 3using Xsolla.Login;
 4using Xsolla.Store;
 5
 6namespace Recipes
 7{
 8	public class InventoryItemsPage : MonoBehaviour
 9	{
10		// Declaration of variables for containers and widget prefabs
11		public Transform WidgetsContainer;
12
13		public GameObject WidgetPrefab;
14
15		private void Start()
16		{
17			// Starting the authentication process
18			XsollaLogin.Instance.SignIn("xsolla", "xsolla", true, null, OnAuthenticationSuccess, OnError);
19		}
20
21		private void OnAuthenticationSuccess(string token)
22		{
23			// After successful authentication starting the request for virtual currencies
24			Token.Instance = Token.Create(token);
25			XsollaStore.Instance.GetInventoryItems(XsollaSettings.StoreProjectId, OnItemsRequestSuccess, OnError);
26		}
27
28		private void OnItemsRequestSuccess(InventoryItems inventoryItems)
29		{
30			// Iterating the item list and assign values for appropriate ui elements
31
32			foreach (var inventoryItem in inventoryItems.items)
33			{
34				if (inventoryItem.IsVirtualCurrency())
35					continue;
36
37				var widgetGo = Instantiate(WidgetPrefab, WidgetsContainer, false);
38				var widget = widgetGo.GetComponent<InventoryItemWidget>();
39
40				widget.NameText.text = inventoryItem.name;
41				widget.DescriptionText.text = inventoryItem.description;
42				widget.QuantityText.text = inventoryItem.quantity.ToString();
43
44				ImageLoader.Instance.GetImageAsync(inventoryItem.image_url, (url, sprite) => widget.IconImage.sprite = sprite);
45			}
46		}
47
48		private void OnError(Error error)
49		{
50			UnityEngine.Debug.LogError($"Error message: {error.errorMessage}");
51		}
52	}
53}

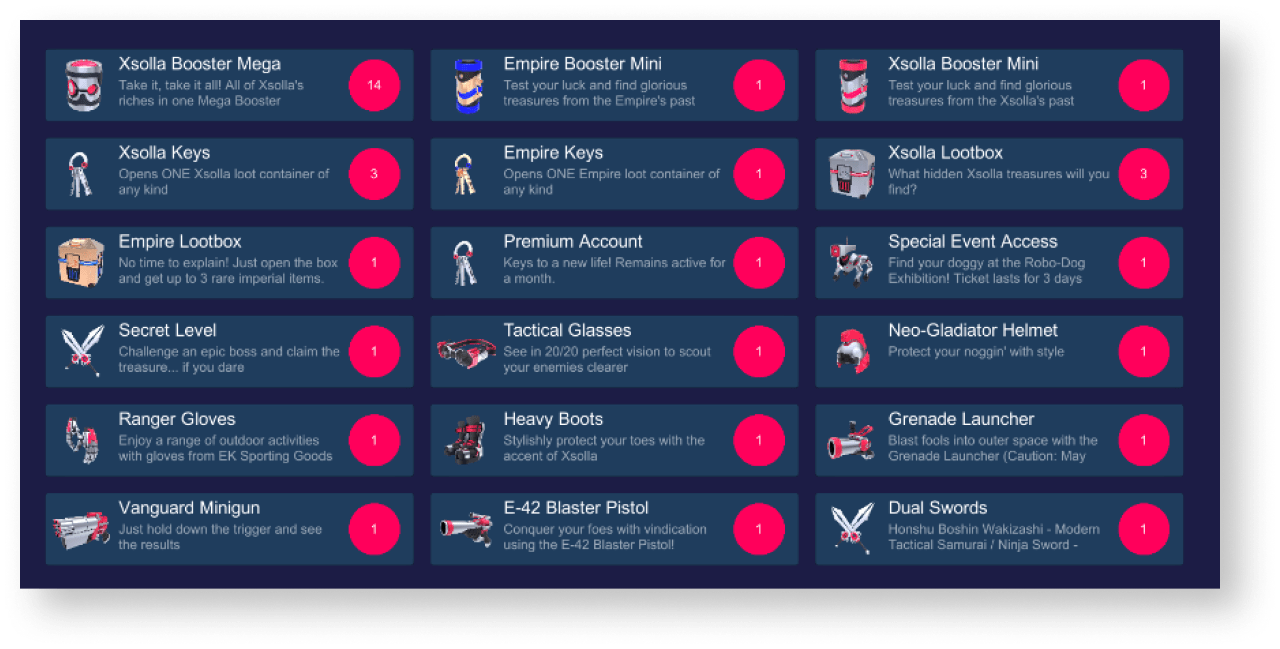

The following picture shows the result of the script’s work.
